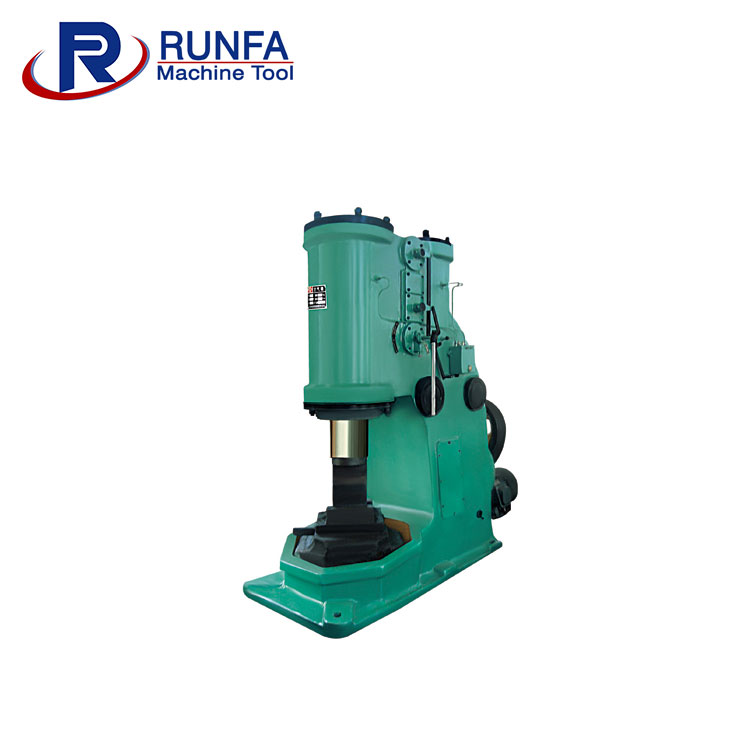

AIR HAMMER C41-400KG
Product Name:
AIR HAMMER C41-400KGModel No.:
C41-400KGMinimum Order:
1
Product Abstract:
C41 Series Pneumatic Hammer is mainly used to free forging,drawing upsetting,punching,hot shearing,forged welding,bending,torsion and swedge forge.One piece forging hammer and two pieces forging hammer can be assembled and trial run before leaving factory. The percent of pass of production(complete machines)leave factory is 100%.
- Product Description
Technical Specifications
Weight of falling parts
Kg
400
Max. hit energy
Kj
9.5
Hit number
min -1
120
Distance from bottom die surface to bottom surface of lead
mm
525
Tup axis to hammer body
mm
520
Dimension of top die surface
mm
250 X 120
Dimension of bottom die surface
mm
250 X 120
Forging Capacity
Square steel
mm
220x220
Round steel
mm
φ240
Motor
Type
--
Rate power
kw
30/415V 3 PH
Speed
r.p.m
1470
Overall dimension
mm
2785 X 1364 X 2750
Anvil Weight
kg
~4800
Total Weight
kg
~8000
