Air Hammer C41-100KG Separated(Two Pieces Type)
Product Name:
Air Hammer C41-100KG Separated(Two Pieces Type)Model No.:
C41-100KG(Separated)Minimum Order:
1
Product Abstract:

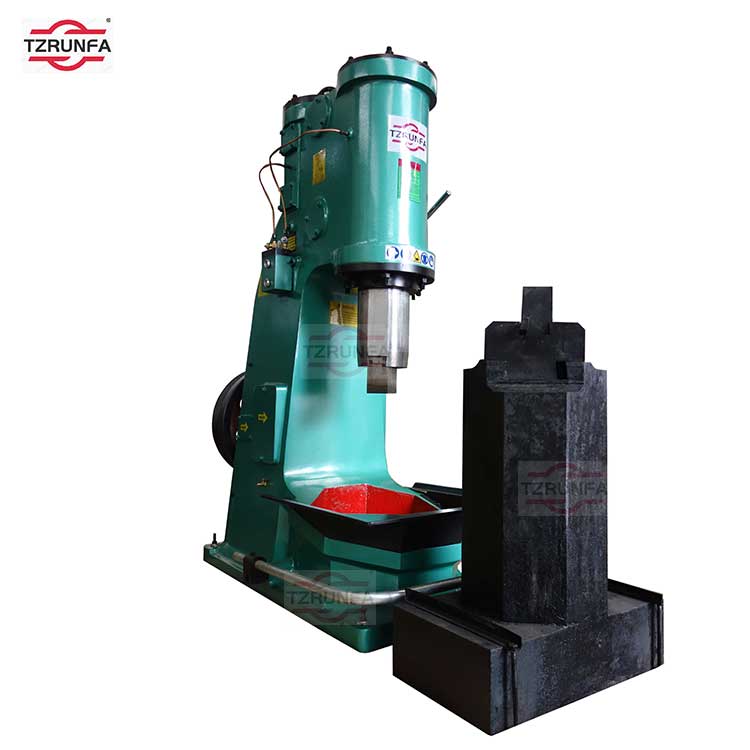

The two piece hammer are divide into two piece.One part is the hammer frame body,the other parts is the anvil block. It is one professional forging hammer for experience blacksmith.It can bear much hitting power when hammer works. Because its anvil block is separated from the hammer frame body,so while hammer works,the hit power would transit To the foundation by anvil block.the hammer body would not shake.its feature: more hit power resistance than single type its disadvantage is installation is not so easy as single one.You need to make a foundation with a hole.once you install the hammer,It would not move to other place. It is much suitable for professional blacksmith.
- Product Description
Name
Unit
Specification
Rated weight of hammer tup
Kg
100
Maximum blow energy
Kj
1.8
Number of blows per minute
r/min
190
Bottom die surface to guide under face
Mm
340
Hammer tup axis to frame front
Mm
300
To die surface
Mm
155x 75
Bottom die surface
Mm
155 x 75
Maximum round steel can be forged(dia.)
Mm
120
Maximum square steel can be forged
Mm
110X110
Bottom die surface to the ground
Mm
763
Floor space(Long x Wide)
mm
1500x780
Machine height(above the ground)
Mm
2050
Motor type
Power
Kw
11
Speed
r/min
960
Total weight
Kg
3000
