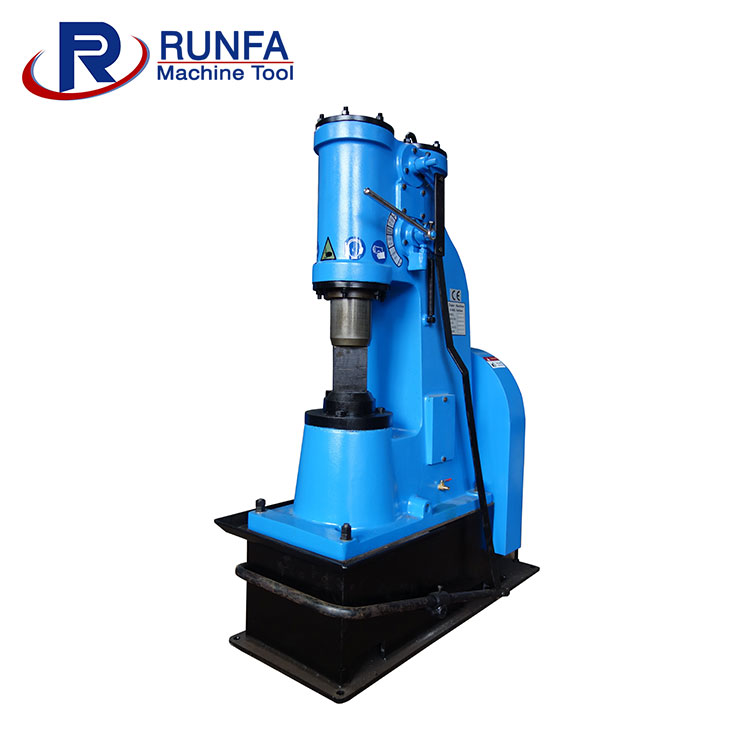

C41-20KG SINGLE WITH BASE PLATE

  • C41-20KG SINGLE WITH BASE PLATE
  • Small Power Hammer
  • Small sword Power hammer
  • Small Power Hammer

Product Abstract:

The series of air hammer with small size,low noise,simple structure,easy operation,flexible movement and convenient to transit,installation,maintenance,the type is widely used for various of free Forging works, such as drawing-out, upsetting, punching, chiseling, forging welding, bending and twisting. It is also used for forging in bolster dies.It is suitable for free forging works of all kinds of different shape parts.


Product Description
Tow piece C41-20KG separated with base

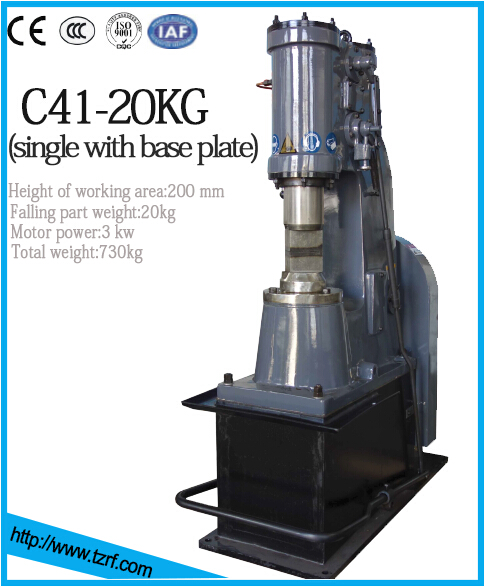

single type with base plate

Technical Specifications(WITH BASE PLATE)

1

Weight of falling parts

Kg

20 (SINGLE)

20( two piece)

2

Max. hit energy

Kj

0.18

0.18

3

Hit number

min -1

258

258

4

Distance from bottom die surface to bottom surface of lead

mm

180

180

5

Tup axis to hammer body

mm

150

150

6

Dimension of top&bottom die surface

mm

70x40

70x40

7

Maximum forged

Round piece

mm

¢22

¢22

Square piece

mm

20x20

20x20

88



Motor

Type

    --





Rate power

kw

2.2

2.2

Speed

r.p.m

1440

1440

9

Overall dimension

mm

1250*520*1690

1290*520*1690

10

Total Weight

kg

750

782

1.The single type and the two piece are different model.Mainly apart them from their structure.

The single model are only one part.because its anvil bolster are installed on the hammer by bolts.its feature:
easy install and easy move to other place.
Its disadvantage is it would shake when the hammer works.because the top hammer die hit the bottom Hammer die ,

so the power would make the hammer shake.so it is much suitable for amateur .

2.The two piece hammer are divide into two piece.One part is the hammer frame body,the other parts is the anvil block.
It is one professional forging hammer for experience blacksmith.It can bear much hitting power when hammer works.
Because its anvil block is separated from the hammer frame body,so while hammer works,the hit power would transit
To the foundation by anvil block.the hammer body would not shake.its feature:
more hit power resistance than single type
its disadvantage is installation is not so easy as single one.You need to make a foundation with a hole.once you install

the hammer,It would not move to other place.
It is much suitable for professional blacksmith.

By the way,we design and develop the base plate one.not only single type,the two piece hammer also can have the same

easy install and move.that’s all the with base plate model.
