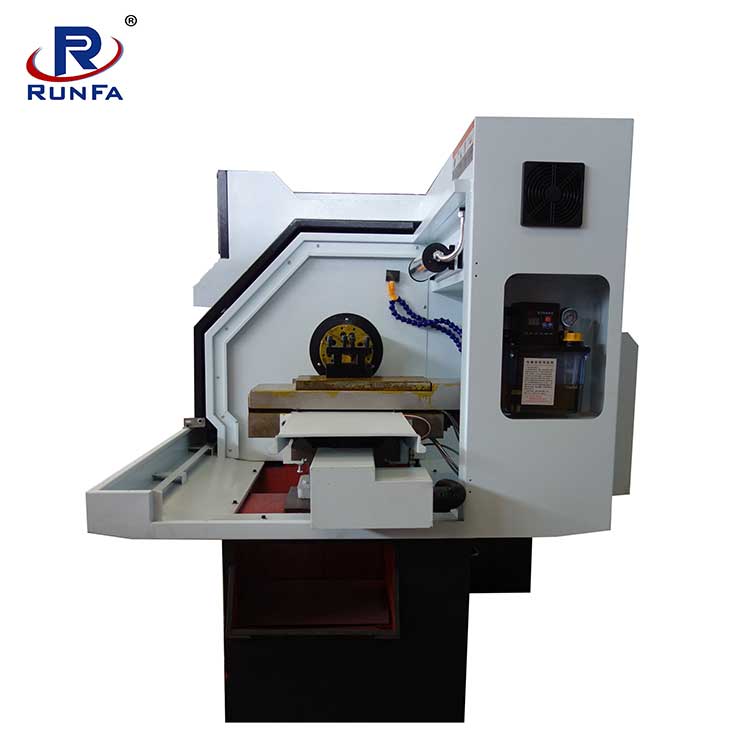

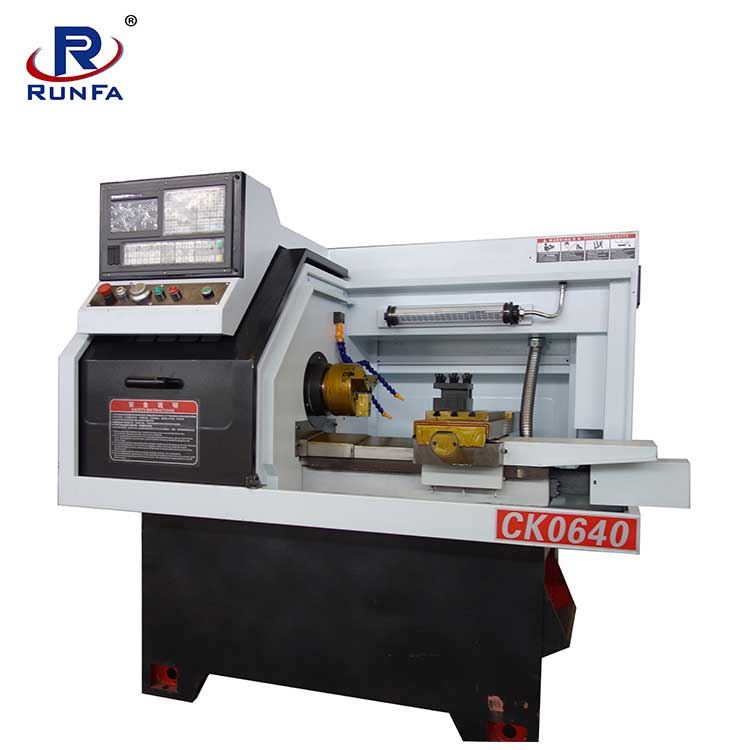

CK0640 Mini CNC Lathe

Home > Lathe Machine > CNC Lathe Machine > CK0640 Mini CNC Lathe

Product Name:
CK0640 Mini CNC Lathe
Model No.:
CK0640
Minimum Order:
1

Product Abstract:

Small cnc lathe machine for auto parts processing CK0640 uses the design of mechanical and electrical integration,generous appearance beautiful,reasonable structure,easy operation. It can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also. can process the single and multiple threads in metric, inch and other standards.

Product Description

Machine Configuration

Standard Configuration:
1- CNC system: GSK928;
2- 6”Hydraulic Chuck;
3- 4-station electric tool post;
4- Automatic lubrication system;
5- Work lighting system;
6- Turning cooling system;
7- Cast iron stand.

Specifications	Unit	CK0640
Max.swing over bed	mm	Φ200
Max.swing over cross slide	mm	Φ100
Max.processing length	mm	200
X/Z axis travel	mm	200/240
Spindle nose	--	A2-5
Spindle bore	mm	φ48
Through hole bar size	mm	Φ40
Max.spindle speed	Rpm	2200
Chuck size	mm	160
Main spindle motor	Kw	3
X/Z axis repeatability	mm	±0.005
X/Z axis feeding motor torque	mm	X:4/Z:4
X/Z rapid move speed	m/min	X:6/Z:8
Tailstock diameter	mm	Φ52（optional）
Quill traverse	mm	90(optional)
Quill taper	mm	MT4(optional)
Tool post type	--	4 electric tool post
Cutting tool shape size	mm	16x16
Guide form	--	Dual rack
Total power capacity	KVA	7
Machine dimensions(LxWxH)	mm	1500x1000x1600
Net weight	KG	800

Optional Configuration:

1- CNC system: GSK980, KND, Siemens 808D, Fanuc, etc.;
2- Manual chuck;
3- Pneumatic chuck;
4- Hydraulic chuck (solid or hollow);
5- Manual tailstock;
6- Pneumatic tailstock;
7- Hydraulic tailstock;
8- Automatic feeder;
9- Vertical four-station turret.
