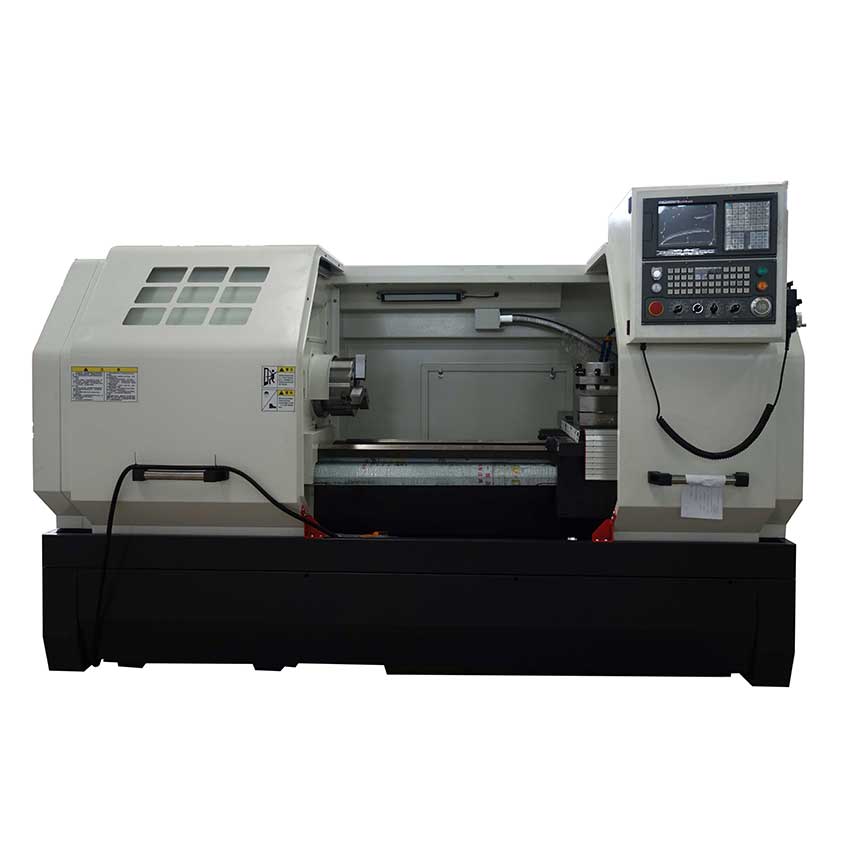

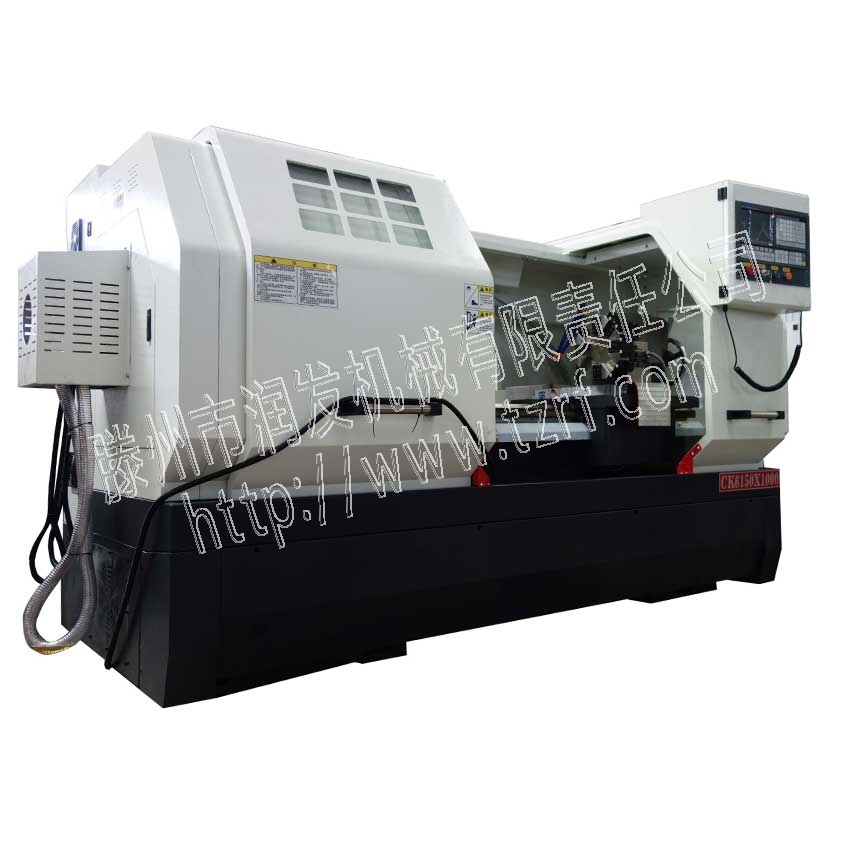

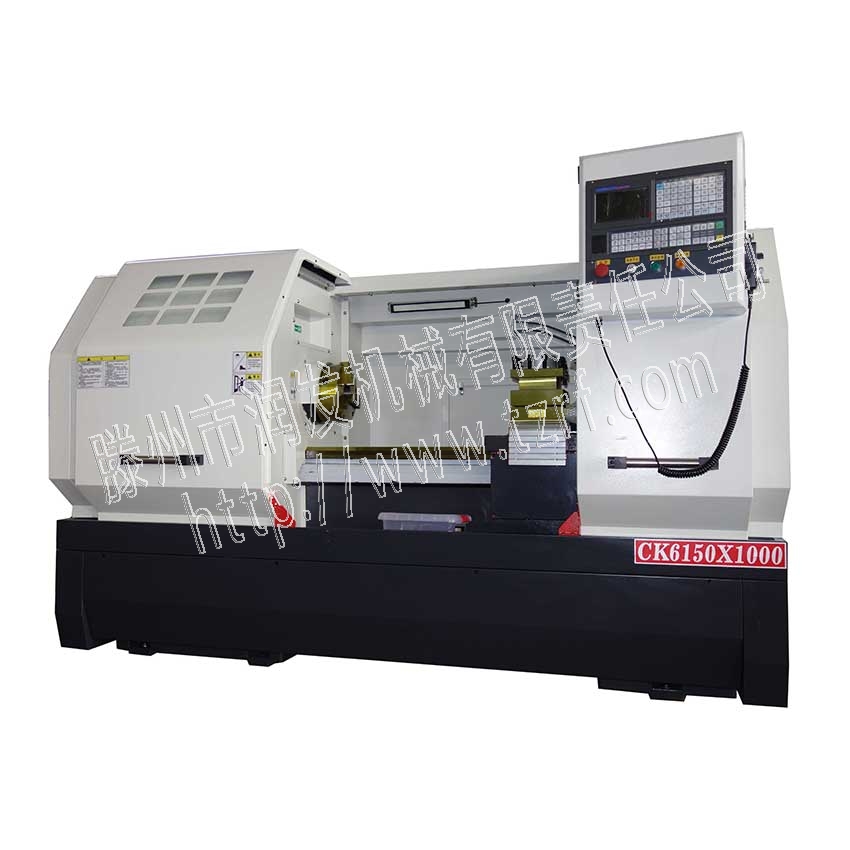

Equipped with the GSK980TB3 CNC system and fully digital AC servo system, the X and Z axes are controlled using a semi-closed loop control.

The ball screw pair adopts C3 precision ball screw, and the electrical components are all imported or well-known domestic brands, complying with

CE or domestic 3C certification.

The machine tool is equipped with a well-known domestic brand vertical four-station CNC turret, which has high positioning accuracy, high strength,

good seismic performance.

Before leaving the factory, the machine tool undergoes strict inspection according to the inspection procedure. Each machine tool is tested for positioning

accuracy and repeat positioning accuracy of the X and Z axes using a laser interferometer, ensuring the accuracy and reliability of the machine tool.

Advantages of the machine tool:

1. The connecting surfaces between the headstock box, bed body, tailstock, and support plate are manually scraped and checked using a laser interferometer

to effectively ensure the positioning accuracy, repeat positioning accuracy, reverse clearance, and stability of the Z and X axes.

2. The machine tool is made of high-strength cast iron, with added copper and chromium special materials. The depth of the hardened guide rail on the bed

reaches 3mm, effectively improving the wear resistance and stability of the machine tool.

3. The machine tool adopts centralized lubrication, with the headstock box equipped with a circulating forced lubrication system, ensuring the cleanliness and

heat dissipation characteristics of the headstock box, thus effectively extending the service life of bearings and gears.

4. The main spindle of the machine tool adopts Wafangdian bearings, with a spindle through-hole diameter of φ82mm. The gears of the machine tool are precision

ground, effectively improving the gear hardness and reducing the machine tool noise.

5. The machine tool adopts pre-loaded ball screws, with the Z-axis ball screw and X-axis ball screw adopting a tension structure, thus improving the accuracy of

machining outer circles and inner holes of workpieces.

6. The machine tool is equipped with a Wenchang four-station electric turret without lifting. The cutter handle size is 25x25mm.

7. Electrical components are from the Shanghai Huadong brand.

1. Bed:

The bed adopts a flat bed structure, resin sand casting, and high-quality cast iron materials. The guide rails are subjected to medium-frequency quenching,

grinding, and plastic cladding processes, which provide excellent wear resistance and accuracy retention.

2. Spindle Box:

The spindle structure adopts a typical front and rear double-point support structure, which provides high stiffness. The bearings are high-precision bearings

specially made by Harbin Bearing Factory, ensuring high rotational accuracy of the spindle. The main drive is a variable frequency drive; the main drive gear

pairs are treated with quenching, grinding, and hardening processes, and all transmission pairs and rolling bearings are lubricated with high-performance

hydraulic oil, providing excellent high-speed and low-temperature rise performance. The design of the spindle box fully considers heat dissipation measures

and shock absorption mechanisms, making the spindle box characterized by low noise and high transmission accuracy, with the machine tool noise not exceeding

the values specified in national standards. The machine tool is equipped with electrical overload protection devices, mechanical overload protection devices, and

emergency stop devices for controlling the rotation of the spindle. The automatic speed changing models have externally mounted automatic speed control boxes.

3. Turning Main Motion:

The spindle box is driven by a variable frequency motor through a V-belt and a speed-changing mechanism. The frequency conversion system allows for stepless

speed regulation. The power of the spindle motor is AC 7.5 kW. The main drive system has been carefully optimized and designed, featuring high transmission accuracy,

excellent power-torque characteristics, high rotation speed, smooth transmission, and a compact structure.

4. Feed Motion:

The transverse (X-axis) and longitudinal feed (Z-axis) motions are driven by servo motors, utilizing precision ball screw pairs. The X-axis ball screw has a diameter of 20mm,

and the Z-axis ball screw has a diameter of 40mm. Domestically produced high-precision ball screws are used. The slide rail is covered with anti-crawl plastic belts, which

ensure excellent positioning accuracy and repeatability.

5. Tailstock:

The design of the machine tool tailstock fully considers rigidity, load-bearing capacity, and ease of use. The tailstock is manually clamped.

6. Chuck:

The machine tool is equipped with a 250mm manual three-jaw chuck.

7. Centralized Lubrication:

A centralized lubrication system is adopted to lubricate the guide rail pairs, ball screws, and bearings. The lubrication pump has functions such as working status

and hydraulic monitoring, and the oil injection cycle can be adjusted at any time.

Five. CNC Tool Holder:

The Wenchang vertical four-station CNC tool holder features high positioning accuracy, stability, reliability, wide application range, simple structure, and convenient maintenance.

Six. Machine Tool Accuracy:

Workpiece Accuracy: IT6-IT7

Workpiece Surface Roughness: Ra1.6μm

Positioning Accuracy (X/Z): 0.015/0.015mm

Repeatability (X/Z): 0.01/0.01mm

Roundness: 0.005mm

Flatness: 0.025/300mm

Seven. Machine Tool Operating Environment:

Ambient Temperature: Within the range of 5°C to 40°C, with an average temperature not exceeding 35°C over 24 hours.

Relative Humidity: Within the range of 30% to 95%, and the principle of humidity changes should not cause condensation.

Altitude: Below 1000m.

Air Quality: Free from excessive dust, acidic gases, corrosive gases, and salts.

Avoid direct sunlight or thermal radiation that may cause changes in ambient temperature to the machine tool.

Install the machine tool away from sources of vibration.

Install the machine tool away from inflammable and explosive materials.

Eight. Random Accessories and Tool List.
