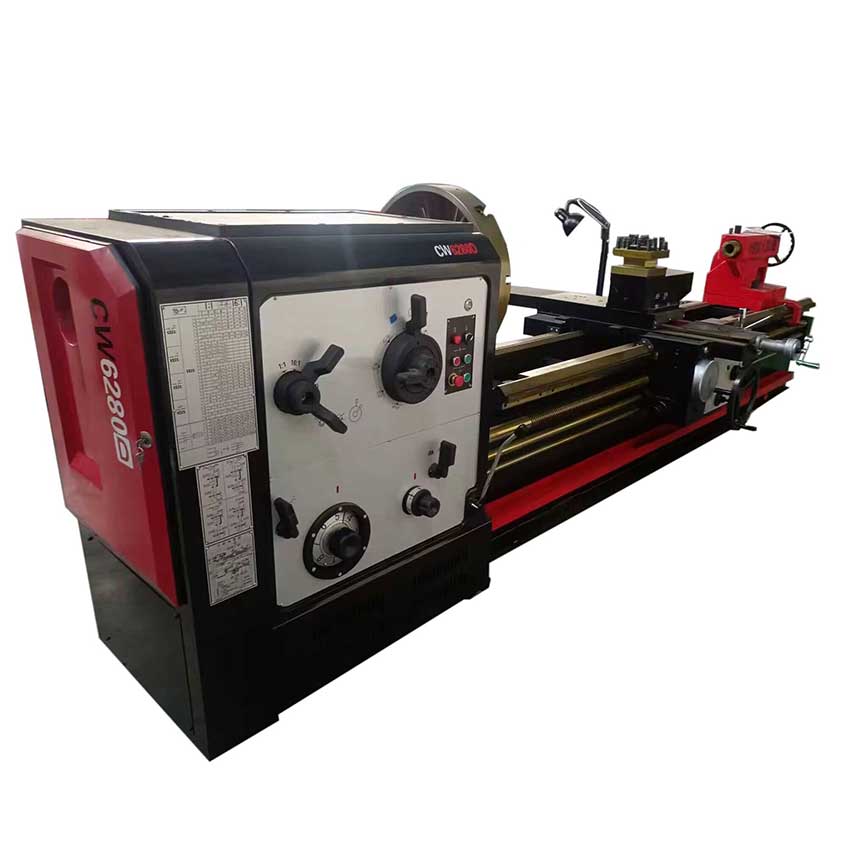

CW6280x2000 Heavy Duty Horizontal Lathe Machine

Home > Lathe Machine > Horizontal Lathe > CW6280x2000 Heavy Duty Horizontal Lathe Machine

Product Name:
CW6280x2000 Heavy Duty Horizontal Lathe Machine
Model No.:
CW6280X2000
Minimum Order:
1

Product Abstract:

The CW6280B horizontal lathe is suitable for processing large and medium-sized parts made of castings, steel, and non-ferrous metals. It can perform turning operations on outer circles, inner holes, end faces, grooves, drilling, boring, and threading, including metric, imperial, module, and pitch threads. The lathe can also independently machine short tapered surfaces using the top tool holder and machine long tapered surfaces in conjunction with longitudinal feed.

Product Description

1. The machine tool power, strong rigidity, spindle speed range is wide, suitable for strong or high speed cutting.

Of spindle brake and shift to the hydraulic control, sensitive and reliable braking available button without a stop

conversion speed, the forced lubrication with pressure oil in the cabinet of the head of a bed, spindle speed range

has several kinds, for user to choose from.

2. Sliding box has a fast moving structure, single handle visualization operation;Spindle and reversing shift to

the brake and the user can choose the hydraulic control or manual control machinery.

3. The machine tool rest with single motor turning cylinder, you can also use the tool rest and longitudinal feed

turning cone length.The machine it is suitable for large and medium-sized of steel and non-ferrous metal parts

processing, can be cylindrical turning, inner hole, face cutting, drilling, boring and nesting.

4. The lathe bed by integrally cast lathe bed structure, internal steel board layout is reasonable, has high rigidity,

machine adopts the 250 casting iron, equipment with high frequency quenching, guide rail mill grinding process,

stable machine tools with high precision, high rigidity, strong cutting.

CW6280Q Horizontal Lathe Machine Parameter

MODEL	CW6280Qx3000mm
(Guide rail width=600mm)
Max. Swing over bed	800mm
Center height	400mm
Max.swing over cross slide	480mm
Max swing over Gap	1000mm (CW6280Q)
Guide rail width	550mm
Max load capacity	2000KG
Maximum distance from center to center	1500mm-20000mm
Headstock
Spindle bore	105mm; D11
Spindle taper	¢ 120mm Taper1:20
Spindle speeds	18kinds; 7.5-1000r/min
Gearbox threads & feeds
Metric threads	1-240mm (50 kinds)
Inch threads TPI	14-1 (26 kinds )
Module threads	0.5-120mm (53 kinds )
Diametric threads DP	28-1 (24kinds )
Steps and range of longitudinal feeds range	64kinds; 0.05-24.3mm/r
Range 1:1	0.1-1.52r/min
Range 16:1	1.6-24.3mm/r
Cross feed range	0.05-12.15mm/r
Range of micro feed with change gear	0.05-0.912mm/r
Longitudinal and cross feed rate	1/2
Rapid move speed of carriage	4000mm/min
Carriage
Max. Travel of lower slide	500mm
Max. Travel of upper sllide	200mm
Tailstock
Sleeve travel	250mm
Sleeve taper	MT5#
Motor
Main motor power	11kw
Rapid move motor power	1.1kw
Power of coolant pump motor	90w
