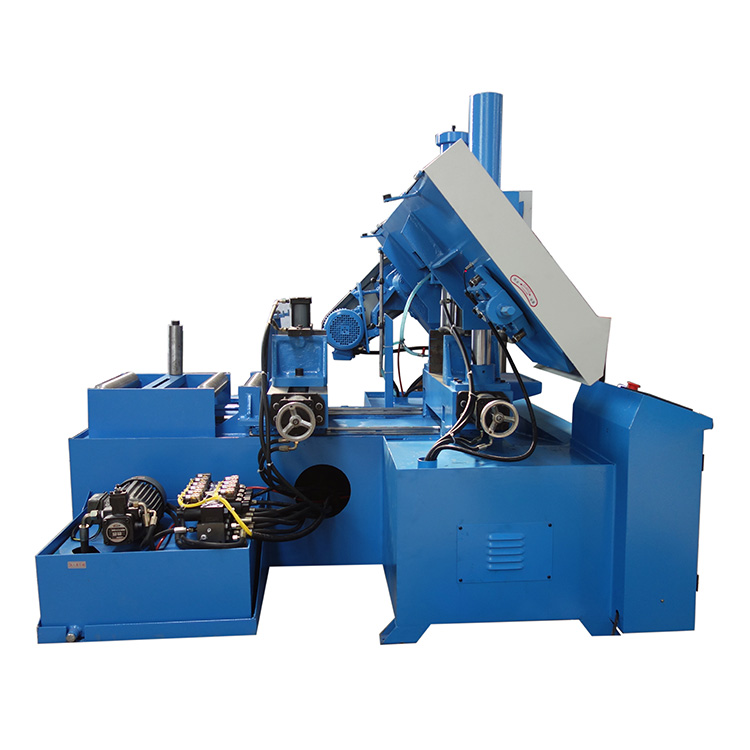

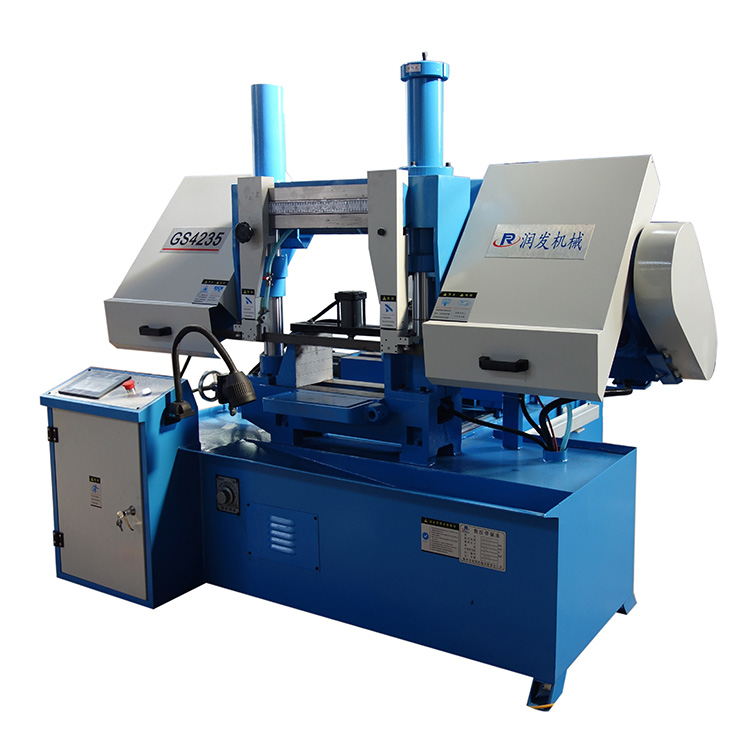

GS4235 CNC Metal Band Saw

  • GT4235 Band Sawing Machine
  • Band Sawing Machine
  • Band Sawing Machine GT4228
  • GT4220 Double Column Horizontal Band Saw
  • GT4228 Band Saw
  • Swivel Band Saw
  • GT4240X Rotate Angle Band Saw
  • GH4250 Gantry Horizontal Band Saw Machine
  • BS-712N Metal Cutting Saw Machine, 7" band saw
  • GS4230 CNC Metal Band Saw
  • GS4235 CNC Metal Band Saw
  • GS4240 Auto Band Saw

Product Abstract:

The automatic band sawing machine is more popular model than other brands in a lot of country.This machine was developed by a group of r&d engineers with long time.It also add artificial intelligent function to auto-detect any situation for material supply,cutting,control quality.Each component was developed by computer design,analysis and computer aided manufacturing(CAM).It is mainly designed to cut metal material .Although this machine can also cut some other material,such as plastic,carbon,bakelite and wood etc.Your machine have advantage as following: •Machine or each component part be capable of being handled safely. •Machine or each component parts is easily moveable or operating for user. •Machine or each component parts is passed strictly testing(Council Directive on the approximation of the laws of the Member States relating to Machinery.) This manual contains shipping,handling,unpacking,initial checkout,operation,maintenance instructions and so on.It is divided into ten sections.Each section covers a specific aspect of the machine.This section contains a general description of the machine,and other available documentation.You are going to introduce this smart machine easily as following as you need.


Product Description

1.Extremely rigid dual-column cast-iron construction
2.PLC control for a fully automated sawing process
2.Easy to use touchscreen monitor for easy and quick recording of saw parameters
4.Hydraulic tool clamping included with standard equipment
5.The feed unit's linear measuring system ensures long-term maximum accuracy
6.Feed of the torsion-proof saw frame is infinitely variable via a hydraulic throttle valve
7.Extra rigid, adjustable saw blade guide
8.Hydraulic workpiece clamping with clamping pressure control and bundle vise are included in the standard equipment

Model

GS4228

GS4230

GS4235

Max.cutting capacity (mm)

 280-280x280

300-300x300

350-350x350

Saw blade speed (m/min)

27,45,69

27,45,69

27,45,69

Feed rate adjustment

Hydraulic stepless

Hydraulic stepless

Hydraulic stepless

Saw blade size (mm)

    3505x27x0.9

    3505x27x0.9

    4115x34x1.1

Main motor (kw)

3

3

4

Hydraulic motor (kw)

0.75

0.75

0.75

Cooling motor power (kw)

0.04

0.04

0.04

One time feed length (mm)

500

500

500

Feed accuracy (mm)

±0.20

±0.20

±0.20

Main transmission structure

Worm gear transmission

Saw blade tension method

Manual

Working clamping mode

Hydraulic vice

Cleaning

wire brush & flood coolant

Dimensions(mm)

2370*1800*1500

2370*1900*1550

2300*2000*1700
