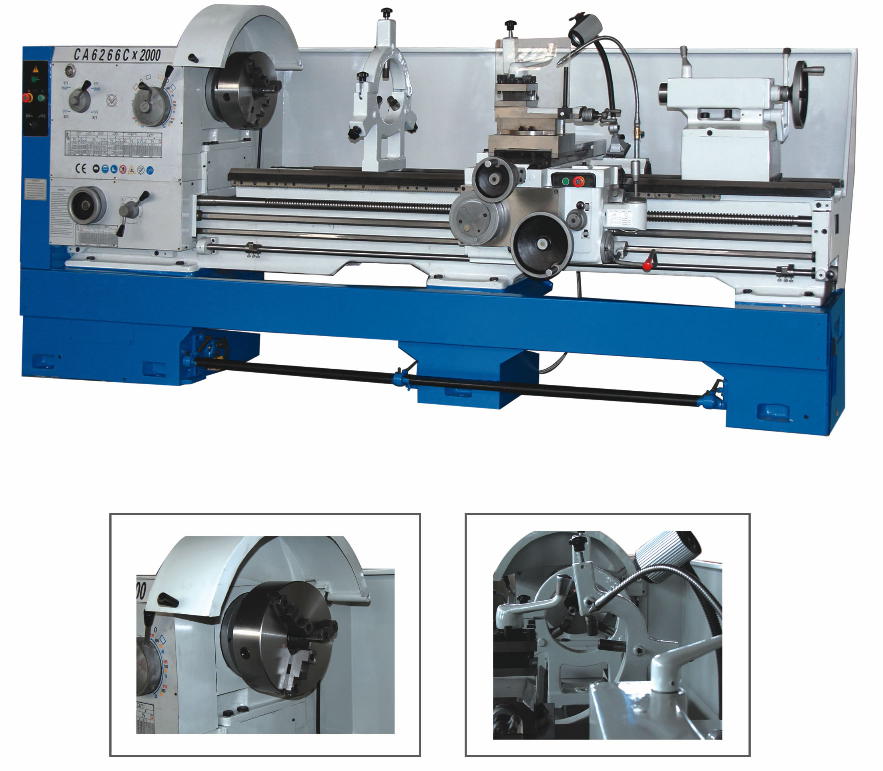

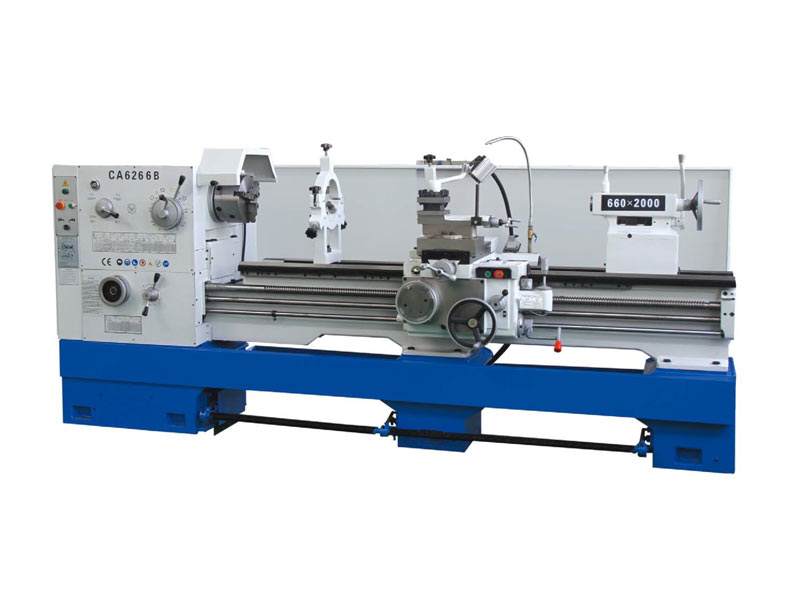

High Precision Metal Engine Lathe Machine (CA6140 CA6150 CA6150B CA6150C CA6166 CA6166B CA6166C)
Product Name:
High Precision Metal Engine Lathe Machine (CA6140 CA6150 CA6150B CA6150C CA6166 CA6166B CA6166C)Model No.:
CA6166 CA6266 CA6166B CA6266B CA6166C CA6266CMinimum Order:
1
Product Abstract:
These lathe mahine can satisfy various turning for the light-duty big disc. And big diameter shaft work piece -High speed dynamically balanced spindle, --using the latest machine tool building technology -Solid cast iron structure--assuring the rigidity of bed, head stock and saddle. -Stress relieved bed and induction hardened guideways --provide the machine with round rigidity and Longer life. -precision ground bed slideways--gurantees high accuracy along the total length of the machine -extra heavy ribbed machine bed -gears are hardened and ground -large capacity of spindle bore 105mm -wide range of diametric, inch, module, and metric threads -joystick control for X and Z feed mounted directly to support -indcution hardened and ground guideways -one kind of high precision lathe machine
- Product Description
Model
specifications
CA6166 CA6266
CA6166B CA6266B
CA6166C CA6266C
Max .Swing over bed
660mm
Max .Swing over carriage
400mm
Max .Swing in gap
——
880mm
effective gap length
——
210mm
Max .length of work piece
750/1000/1500/2000/2200/3000/4000mm
width of bed
400mm
section of turning tool
25×25mm
Spindle
spindle speed
16-1400rpm(24steps)
hole through spindle
52mm 、(80mm)、[105mm]
spindle taper
No.6(MT6)(Φ90 1:20)[Φ113:20]
Feed
No. of feed
(64 kinds)(for each)
range of metric threads
(1-192mm) (44 kinds)
range of inch threads
(2-24tpi) (21kinds)
range of module threads
0.25-48(module 39 kinds)
range of diametral pitc threads
1-96DP(37 kinds)
Tailstock
Max. tailstock spindle travel
150mm
tailstock spindle diameter
75mm
taper of tailstock spindle center hole
NO.5 (MT5)
main motor
7.5KW(10HP)
Packing dimensions
（L×W×H mm）
Overall dimensions for 750mm
2550×1140×1750
Overall dimensions for 1000mm
2700×1140×1750
Overall dimensions for 1500mm
3200×1140×1750
Overall dimensions for 2000mm
3700×1140×1750
Overall dimensions for 2200mm
4030×1140×1750
Overall dimensions for 3000mm
4800×1140×1750
Overall dimensions for 4000mm
5680×1140×1700
Weight(kg)
Length
G.W. N.W.
Overall dimensions for 750mm
2380 2260
Overall dimensions for 1000mm
2570 2450
Overall dimensions for 1500mm
2810 2640
Overall dimensions for 2000mm
3050 2880
Overall dimensions for 2200mm
3390 3180
Overall dimensions for 3000mm
3930 3687
Overall dimensions for 4000mm
4580 4200
