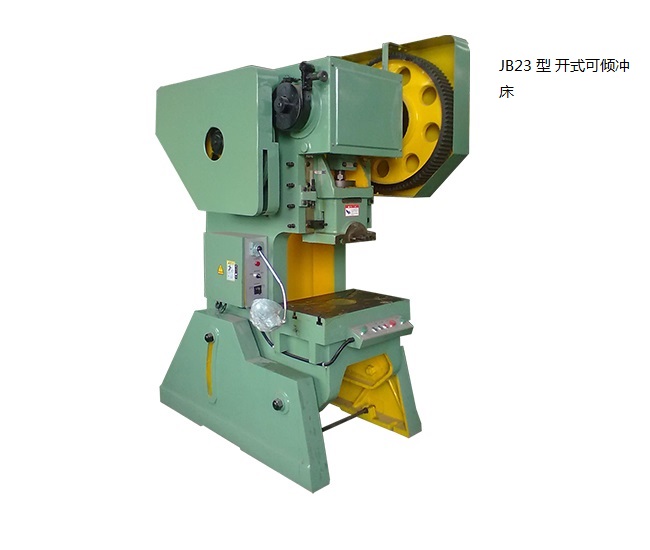

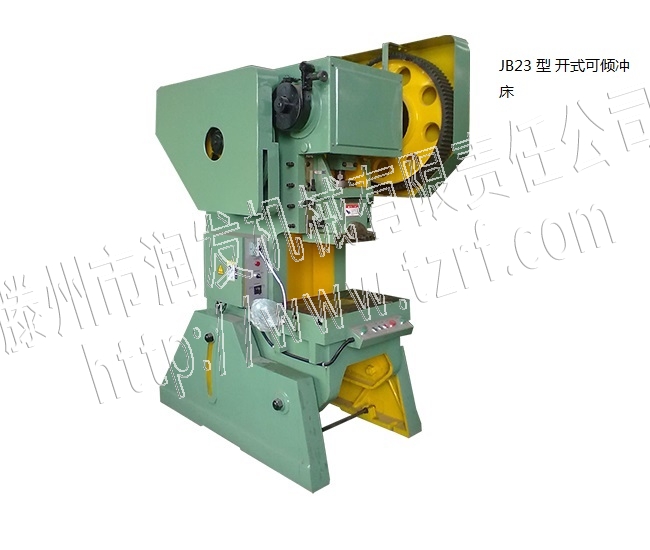

JB23 series open back& inclinable press
Product Name:
JB23 series open back& inclinable pressModel No.:
J23-16/25/40/63/63A/80/100Minimum Order:
1
Product Abstract:
Use: 1. Suitable for various cold stamping process ：blanking, punching, molding, bending, pulling and stretching etc. 2. Widely used in electronic components, instruments and meters, hardware tools, toys, vehicles, machinery, agricultural machinery and other industrial fields.
- Product Description
Use: 1. Suitable for various cold stamping process ：blanking, punching, molding, bending,
pulling and stretching etc.
2. Widely used in electronic components, instruments and meters, hardware tools, toys,
vehicles, machinery, agricultural machinery and other industrial fields.
Structure: 1. Casting body, stable performance.
2.The inclinable frame made of cast iron make woke piece or scrap slide down from the
die.
3. Rigid rotated bond clutch, simple structure
4.The friction brake is used.Fixed with the slide,the overload protector will be damaged
to protect the machine from overloading.
5. Adopts horizontally placed crankshaft, easily maintain.
Feature: 1. Simple structure, excellent versatility, easy to maintain and operate
2. Economic press
JB23 SERIES OPEN BACK& INCLINABLE PRESS MACHINE
Type
Spcification
Unit
JB23-16
JB23-25
JB23B-40
JB23-63
JB23-63A
JB23-80
JB23-100
Nominal force
kN
160
250
400
630
630
800
1000
Stroke under nominal force
mm
2
2.5
4
4
4
5
5
Slide block stroke
mm
50
70
80
80
80
100
100
Number of stroke
times/min
140
65
50
50
50
50
40
Max die set height
mm
170
200
230
250
300
300
300
Die set height adjustment
mm
30
30
45
50
50
60
80
Distance from slide block center to the frame
mm
160
200
220
250
250
260
310
Workable dimensions(F·B×L·R)
mm
320*460
350*520
390*630
420*650
470*750
470*750
570*860
Dimensions of worktable hole
mm
Φ120
Φ120
Φ155
Φ180
Φ180
Φ180
Φ180
Thickness of bolster
mm
45
50
70
70
80
80
90
Dimensions of slide block(F·B×L·R)
mm
120*180
170*220
210*250
240*280
270*360
260*300
360*450
Size of the handle hole(Diameter×Depth)
mm
Φ40*60
Φ40*60
Φ50*70
Φ50*70
Φ50*70
Φ60*80
Φ60*80
Distance between columns of body
mm
240
240
330
320
390
300
420
Motor
Type
Y90L-6
Y100L-4
Y112M-4
Y132S-4
Y132S-4
Y132S-4
Y132S-4
Power
kw
1.5
3
4
5.5
5.5
5.5
7.5
Max. tilting angel of body
º
25
25
25
25
25
20
20
Outline dimension(F·B×L·R×H)
mm
1130*830
*1890
1120*860
*2200
1600*1100
*2250
1740*1100
*2560
1740*1180
*2560
1850*1265
*2650
2050*1400
*2850
Net weight
Kg
1090
2100
2960
3800
4300
5015
6120
