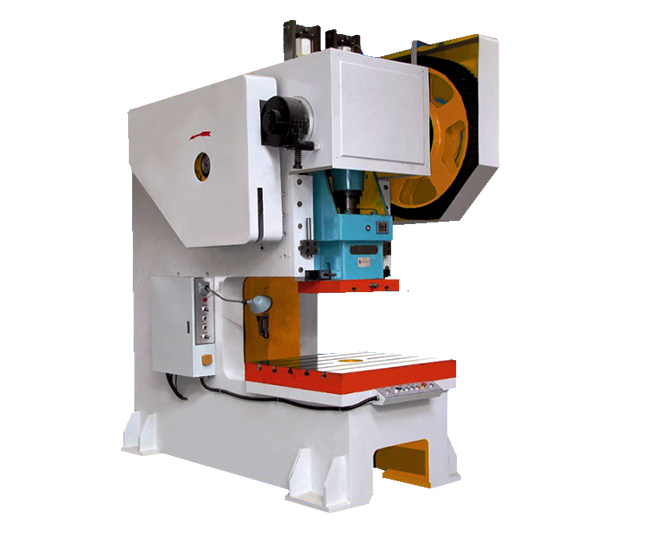

JC21S series deep throat fixed platform press

Home > Puch Press Machine > JC21S series deep throat fixed platform press

Product Name:
JC21S series deep throat fixed platform press
Model No.:
JC21S-16/25/40/63/80/100/125
Minimum Order:
1

Product Abstract:

Use: 1. Suitable for various cold stamping process ：blanking, punching, molding, bending, pulling and stretching etc. 2. Widely used in electronic components, instruments and meters, vehicles, machinery, agricultural machinery ,hardware tools, and other industrial fields.

Product Description

Use: 1. Suitable for various cold stamping process ：blanking, punching, molding, bending,

pulling and stretching etc.

2. Widely used in electronic components, instruments and meters, vehicles,

machinery, agricultural machinery ,hardware tools, and other industrial fields.

Structure:1.Welded body with steel plate ,higher strength and stiffness.

2.C type body, convenient for the processing of the die with larger size material

3. Adopts horizontally placed crankshaft, easily maintain.

4. Rigid clutch, simple structure

5. Casting body, stable performance

6.Fixed with the slide,the mechanical overload protector will be damaged to protect the machine

from overloading.

Feature: 1. The bigger throat depth suitable for the cold stamping processing of larger sheet

materials.

2.Higher strength and stiffness. economical presses.

3.Simple structure, excellent versatility,and easy to maintain and operate

JC21S SERIES DEEP THROAT FIXED PLATFORM PRESS
Type Specification		Unit	JC21S-16	JC21S-25	JC21S-40	JC21S-63	JC21S-80	JC21S- 100	JC21S- 125	JC21S- 160	JC21S- 200	JC21S- 250
Nominal force		kN	160	250	400	630	800	1000	1250	1600	2000	2500
Stroke under nominal force		mm	2	2.5	4	4	5	5	6	6	6	6
Slide block stroke		mm	70	70	80	80	100	100	120	140	160	160
Number of stroke		次/min	110	65	50	50	50	40	38	40	36	35
Max die set height		mm	200	200	230	250	300	300	320	350	390	450
Die set height adjustment		mm	30	30	40	50	60	80	100	110	110	110
Distance from slide block center to the frame		mm	710	710	710	710	800	800	800	800	800	800
Workable dimensions(F·B×L·R)		mm	400*600	400*600	420*650	440*670	470*750	570*860	650*1000	710*1120	740*1300	800*1400
Dimensions of worktable		mm	Φ120	Φ130	Φ180	Φ180	Φ180	Φ180	Φ200	Φ220	Φ180	Φ220
Thickness of bolster		mm	50	50	70	70	80	90	110	130	160	160
Dimensions of slide block(F·B×L·R)		mm	170*220	170*220	210*250	240*280	260*300	360*450	420*520	440*560	580*760	600*780
Size of the handle hole(Diameter×Depth)		mm	Φ40*60	Φ40*60	Φ50*70	Φ50*70	Φ60*80	Φ60*80	Φ60*80	Φ650*90	Φ65*90	Φ70*100
Distance between columns of body		mm	200	250	280	320	360	460	480	600	690	700
Motor	Type		Y100L-6	Y100L-4	Y112M-4	Y132S-4	Y132S-4	Y132M-4	Y160L-6	Y180L-6	Y200L1-6	Y200L2-6
Motor	Power	kw	2.2	3	4	5.5	5.5	7.5	11	15	18.5	22
Outline dimension(F·B×L·R×H)		mm	1400780 1950	1890800 1950	19701100 2300	19801100 2350	2260* 1265 *2450	2430* 1400 *2850	2650* 1640 *3400	2660* 1710 *3480	2880* 1900 *3890	3430* 2100 *3750
Net weight		kg	2050	2400	3820	4650	6100	7200	11200	16500	19200	24600
