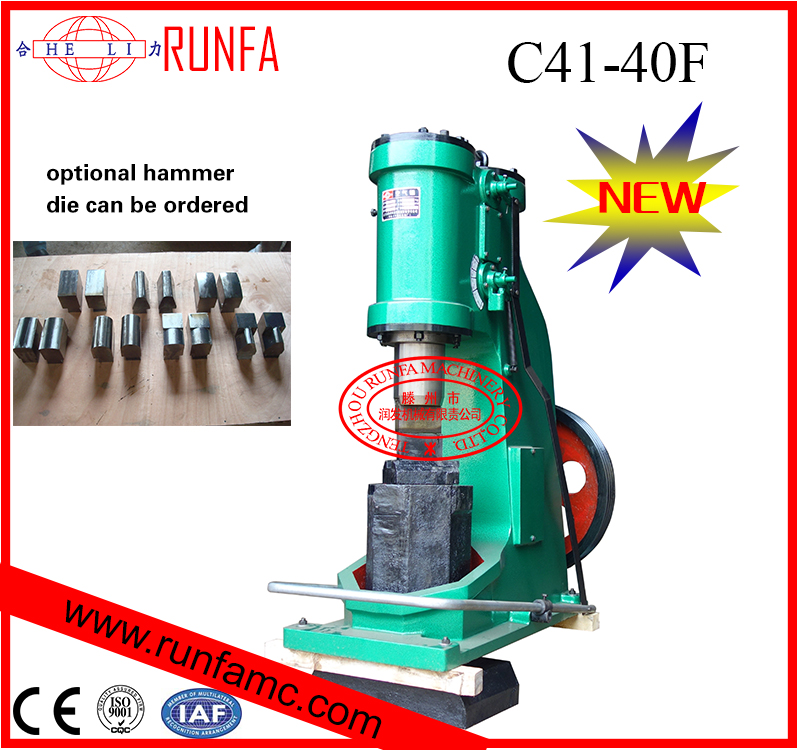

Pneuamtic Forging Hammer

  • Pneuamtic Forging Hammer
  • Single Air Hammer Power Hammer
  • Single With Base Plate 40DB

Product Abstract:

The series of air hammer with small size,low noise,simple structure,easy operation,flexible movement and convenient to transit,installation,maintenance,the type is widely used for various of free Forging works, such as drawing-out, upsetting, punching, chiseling, forging welding, bending and twisting. It is also used for forging in bolster dies.It is suitable for free forging works of all kinds of different shape parts.


Product Description



Our all models are C41-16KG, C41-20KG(integrated), C41-20KG(separate),

C41-25KG, C41-40KG(integrated), C41-40KG(separate),

C41-55KG, C41-75KG, C41-150KG.

Air hammer is widely used for general forging works, such as drawing-out, upsetting, punching,

chiseling, forging, welding, bending and twisting. It is also used for forge in bolster dies.

Air hammer is also called forging hammer, blacksmithing hammer, pneumatic forging hammer,

power hammer and so on. Air hammer falling weight at 16kg, 20kg, 25kg, 40kg, 55kg, 75kg,

150kg mainly for artistic wrought iron, artistic forging, blacksmith, agriculture tools and small open die forging parts.

SPECIFICATION

UNIT

C41-40kg

Max.   hit  energy

kj

0.53

Height  of  working  area

mm

245

Hit  number

min -1

245

Dimension of top and bottom die surface(LxW)

mm

120 x 50

Max.   square  steel  can  be  forged

mm

52 x 52

Max.   round  steel  can  be  forged(Diameter)

mm

¢68

Motor    power

kw

4

Speeds  of  motor

r. p. m

1440

Anvil  weight

kg

400

Total  weight

kg

1350

Overall  dimensions(L*W*H)

mm

1080*600*1430
