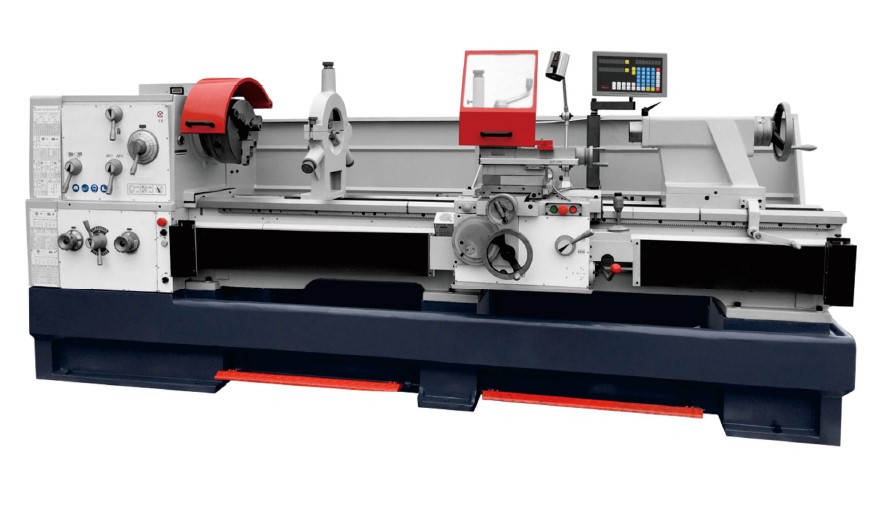

Precision Gap-Bed Lathe Machine (conventional lathe C6266 C6280)
Product Name:
Precision Gap-Bed Lathe Machine (conventional lathe C6266 C6280)Model No.:
C6280Minimum Order:
1
Product Abstract:
removable bridge for machining of large parts high accuracy and low-noise operation even at high cutting power heavy and large bed hardened guideways (>HB 400) large spindle capacity 105 mm for machining of long parts manual central lubrication multi-disk clutch for soft startup with heavy parts automatic lubrication of headstock and main drive protected leadscrew overload protection for feed shaft and leadscrew support moves in linear and cross direction via rapid feed
- Product Description
MACHINE TOOL TYPE
C6280
CAPACITY
Swing Over Slide
Φ800mm
Swing Over Cross Slide
Φ560mm
Swing in Gap Diameter
Φ1040mm
Length of Gap
250mm
Center Height
400mm
Distance Between Centers
1500mm/2000mm/3000mm
Width of Bed
510mm
Max. Section of Tool
25mm × 25mm
Max. Travel of Cross Slide
420mm
Max. Travel of Compound Rest
230mm
HEADSTOCK
Spindle Bore
Φ105mm
Spindle Nose
D1-8
Taper of Spindle Bore
Φ113mm(1:20)/MT5
Spindle Speed Number
16
Range of Spindle Speed
17～1100rpm
FEEDS AND THREADS
Leadscrew Pitch
Φ40mm×2T.P.I. or Φ40mm×12mm
Inch Threads Range
7/16～80T.P.I. (54 kinds)
Metric Threads Range
0.45～120mm (54 kinds)
Diametrical Pitches Range
7/8～160DP (42 kinds)
Module Pitches Range
0.25～60MP (46 kinds)
Longitudinal Feeds Range in Metric Lead Screw
0.044～1.48mm/rev (25 kinds)
Longitudinal Feeds Range in Inch Lead Screw
0.00165"～0.05497"/rev (25 kinds)
Cross Feeds Range in Metric Lead Screw
0.022～0.74mm/rev (25 kinds)
Cross Feeds Range in Inch Lead Screw
0.00083"～0.02774"/rev (25 kinds)
TAILSTOCK
Quill travel
235mm
Quill diameter
Φ90mm
Quill taper
MT5
MOTOR
Main motor power
11kW (15HP)
Coolant pump power
0.09kW (1/8HP)
DIMENSION AND WEIGHT
Overall Dimension (L×W×H)
321/371/471cm×136cm×167cm
Packing Size (L×W×H)
324/374/474cm×127cm×191cm
Net Weight
3320/3605/3970kg
Gross Weight
3825/4125/4600kg
PRODUCT FEATURES:
1. The surface of the bedways is supersonic frequency handened.
2. The spindle bore size is 80mm.The spindle system is high in rigitidy and accuracy.
3. Rapid feed structure is available on Apron.
4. Clutch in headstock makes the lathe more safe and reliable.
STANDARD ACCESSORIES:
325mm 3-jaw chuck; 400mm 4-jaw chuck;
630mm face plate; Steady rest;
Follow rest; Tool box;
Taper dead center; Live center;
Spindle sleeve; Operator's manual;
Test record;
OPTIONAL ACCESSORIES:
Chuck cover;
Tool post cover;
Leadscrew cover;
Tapper attachment;
Quick change tool post;
DRO;
