Product Abstract:

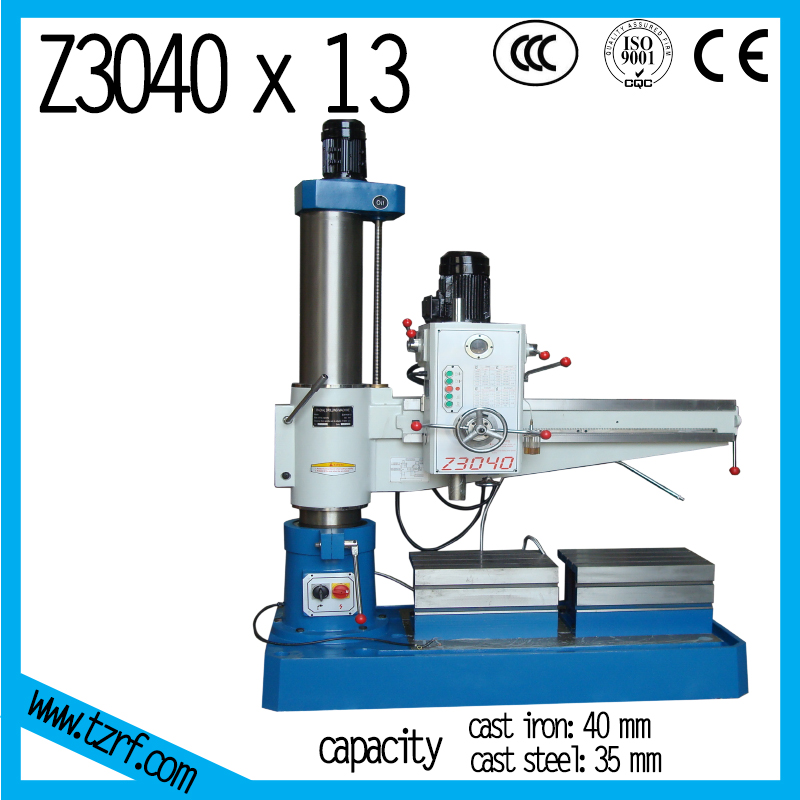

The radial drilling machine of Model Z3040×13 is one of the large multi-purpose equipments, which is characterized by the high efficiency , close tolerance. Drilling diameter of 40mm is used to drill, expand, ream, groove, tap the middle and large parts and even to bore the holes if it is equipped with the necessary devices. This type of machine is easy to operate and is an ideal equipment in the manufacturing and/or repair fields; and it has been awarded the top quality medal of Shandong Province many times and sells well at home and abroad.


Product Description
Main specification Z3040 X 10/13
Max. drilling dia. 40 mm
Distance from spindle nose to table surface 260-1050 mm
Distance from spindle axis to column generatrix 360-1000 mm

360-1300 mm
Spindle travel 200 mm
Spindle taper  MT 4
Range of spindle speeds 75~1200 r.p.m
Number of spindle speed  6 级(steps
Main motor power 2.2 KW
 Lifting motor power 1.1 KW
Table size 545 x 380 x 310 mm
Overall dimensions 1500 x 705 x 2200 mm

1820 x 840 x 2420 mm
Net weight 1250/1350 kg
