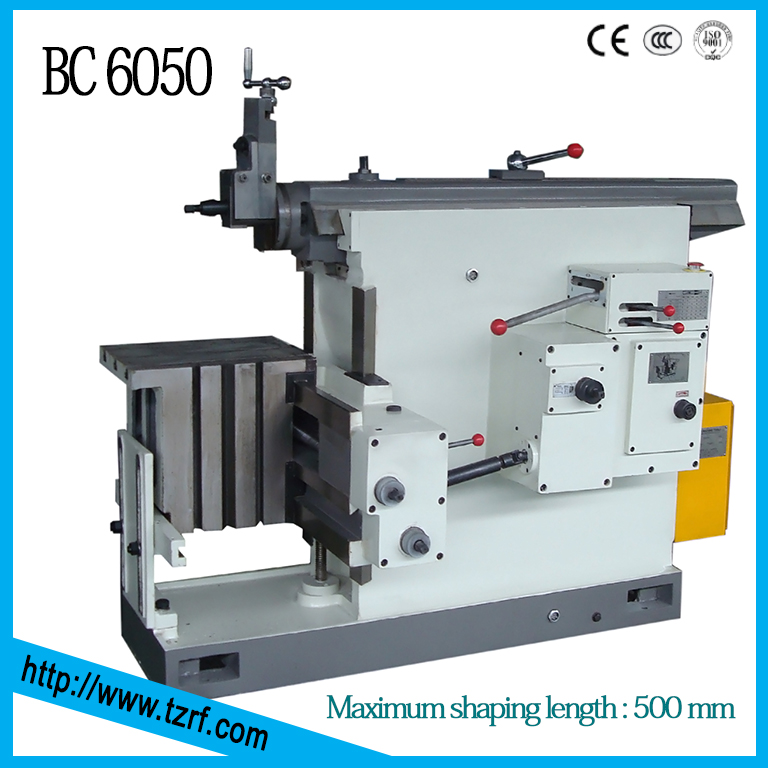

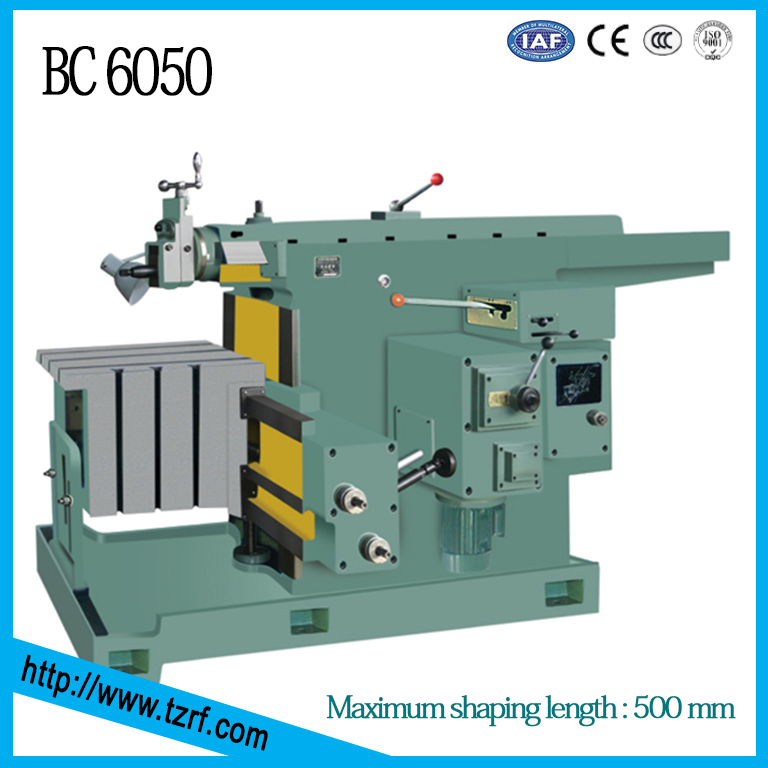

Shaper BC6050
- Product Description
Model BC6050 Max.shapping length(mm) 500 650 Max.range of the borizontal movement of the table(mm) 525 630 Max.distance between the ram bottom and table(mm) 370 380 Max.length of the vertical movement of table(mm) 270 315 Dimensions of table top(L×W)(mm) 440×360 630×400 Max. stroke length of the toolhead(mm) 120 120 Max.swivel angle of the toolhead(°) ±60° ±60° Max.section of tool(W×T)(mm) 20×30 20×30 Number of ram reciprocation per minute(NO/min) 14-80 14-80 Range of table feed Horizontal 0.2-0.25 0.08-1 0.2-0.25 0.08-1 Vertical(mm/recip) Speed of rapid travel of table Horizontal 0.95 0.38 0.95 0.38 Vertical width of the T-slot for center positioning(mm) 18 18 Power of the main motor(kw) 3 3 N.W/G.W(kg) 1650 2200 Overall dimensions(L×W×H)(mm) 2160×1070×1194 2382×1210×1504
