Home > Conventional Milling Machine > Universal Milling Machine > Universal Milling Machine LM-1450A

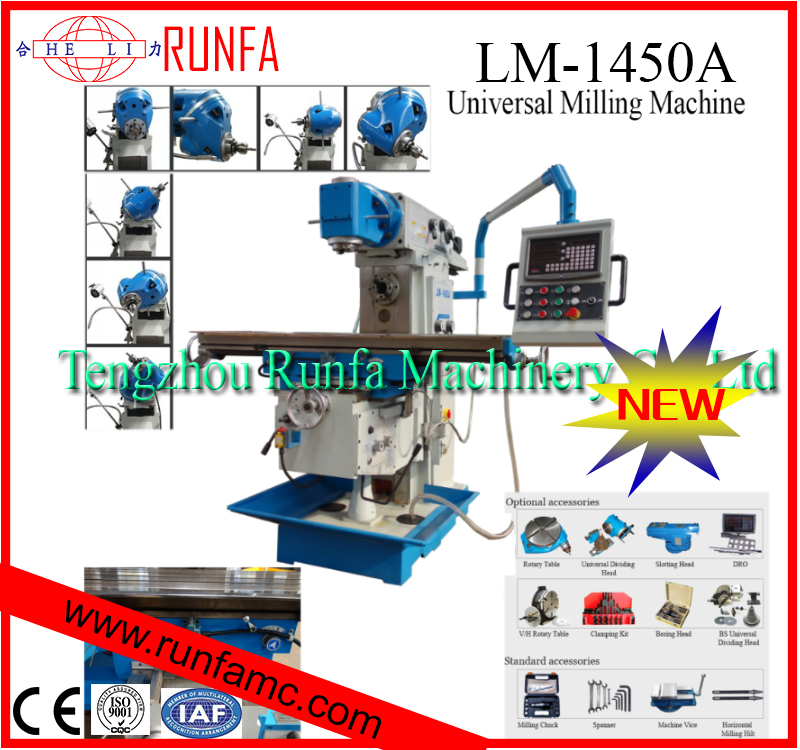

Universal Milling Machine LM-1450A

Product Name:
Universal Milling Machine LM-1450A
Model No.:
LM-1450A
Minimum Order:
1

Product Abstract:

LM-1450A universal swivel head milling machine is based on an increase in the XQ1450 installation of rotary table 45 degrees processing of a wide range of ,three-axis automatic feed large torque and strong power,2HP, fast-moving 2000mm/min.

Product Description

LM-1450A universal swivel head milling machine is based on an increase in the XQ1450 installation of rotary table 45 degrees processing of a

wide range of ,three-axis automatic feed large torque and strong power,2HP, fast-moving 2000mm/min.

rectangular table guideways with high stability

hardened and ground table surface

automatic feeds on X Y and Z axis

arrow diagram refers special accessories

Specification	LM-1450A
Spindle taper	ISO50
Distance between sindle axis and milling machine guideway	505
Horizontal spindle center height	0-480
Table size	*1500360**
Table travel	*900400405*
Main motor	4kw
Feed motor	1.5kw
Feeding speed	30/55/100/190/350/630/2000
Spindle speed	60-1800
Pack measure	*200020002250*
N.W/G.W	2650/2850kg

Specification

LM-1450A

Spindle taper

ISO50

Distance between sindle axis and milling machine guideway

505

Horizontal spindle center height

0-480

Table size

1500*360

Table travel

900*400*405
