Universal Milling Machine XQ6232WA

  • Universal Milling Machine X6332C
  • X6336 Universal Milling MACHINE
  • Radial Arm Milling Machine X6325
  • Universal Milling Machine XQ6232WA
  • Universal Milling Machine LM-1450A
  • Universal Milling Machine LM-1450A
  • Universal Milling Machine LM-1450A
  • Universal Milling Machine LM-1450A

Product Abstract:

XQ6232WA  milling machine is one of Precision manual tem turret milling machine for sale series.It has unique characteristic portable milling machine. In addition to the machining of characteristic of ordinary horizontal milling machine, it also has the ram type main gear box. In terms of the from of milling head, it adopts the universal milling head with both verticaland horizontal forms, which can adjust the position of principal axis to any angle, can machine the working position where ordinary surface milling machine can hardly reach and can machine simultaneously in vertica l and horizontal manners.


Product Description

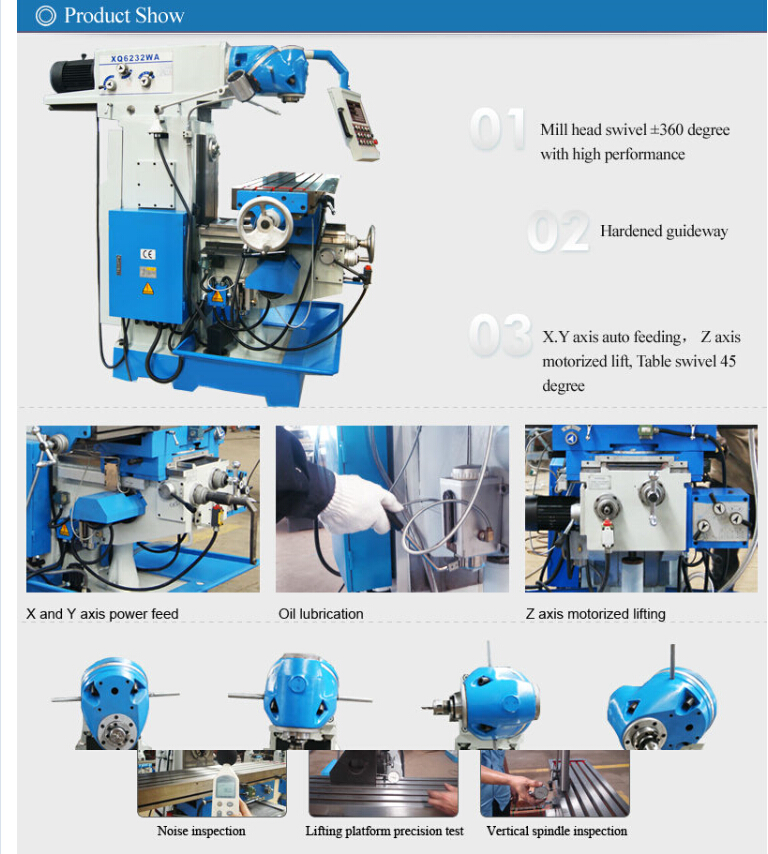

Advantage:

1 Universal milling head, machining

2 Three axis hardening treatment

3 Mechanical feeding device

4. Independent of the horizontal milling function

5. Automatic tools change universal milling machine



Parameter:

Specification

XQ6232WA

Max. horizontal milling dia. (mm)

100

Spindle taper (mm)

ISO40

Max. vertical milliing dia. (mm)

28

distance between spindle nose and table sruface (mm)

100-500

Spindle speed range (r.p.m)

35-1600 (vertical)
40-1300 (12)(Horizontal)

Table size (mm)

1370x320

Table travel (mm)

720x340

Motor (kw)

3 (V/H)

N.W/G.W (kg)

1550/1700

Package size (mm)

1520x1630x2200
