X5036 Universal Manual Heavy Duty Large Vertical Knee Type Milling Machine
Product Name:
X5036 Universal Manual Heavy Duty Large Vertical Knee Type Milling MachineModel No.:
X5036Minimum Order:
1
Product Abstract:

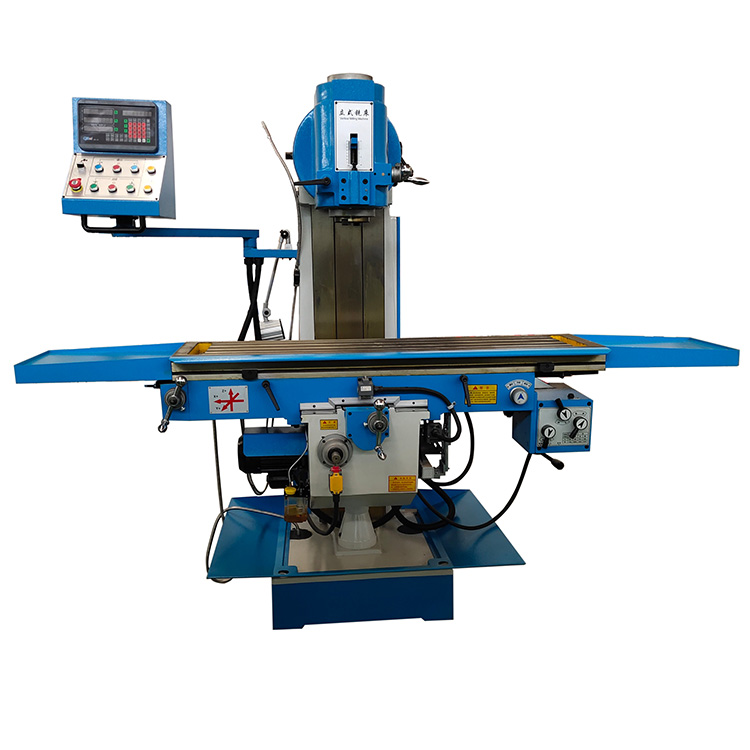

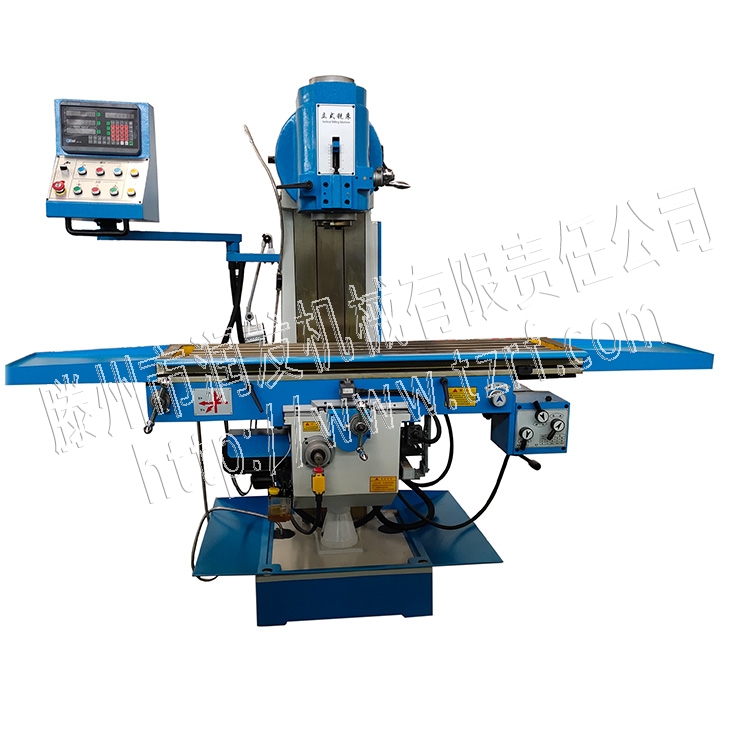

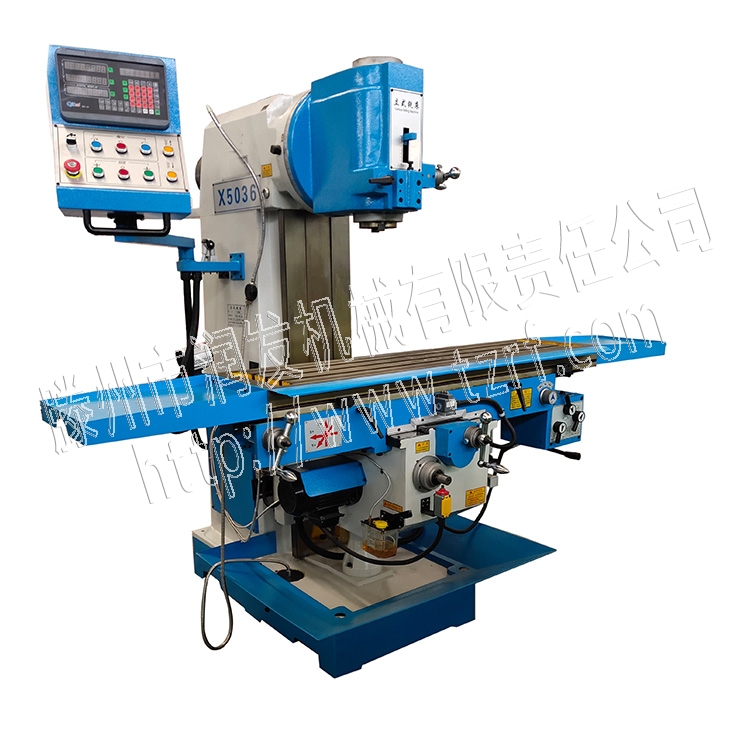

X5036 Universal Manual Heavy duty Large Vertical Knee type Milling Machine Model X5036 Vertical Knee-type Milling Machine is suit for milling flat, inclined face, angle surface, slots by employing disc cutters, angular cutters, formed cutters and face metal milling cutters. When mounted with the index, the machine will be able to perform milling operations in gears, Cutter, helix groove, cam and tub wheel. Vertical milling head can be swiveled by ±45°, Spindle quill can be moved in vertical.The longitudinal, cross and vertical movements of the table can both be operated by hand and power, and it can be rapid moved. It has the large working table, a set of cantilever for electric button and a longitudinal handwheel in front of the table, So the machine can be easy to operate. Working table and slide ways adopted quality cast hardened ensure high accuracy.
- Product Description
Product Overview
☆X5036 vertical knee-type milling machine is a general purpose machine which can be used in wide range. Mounted with face, cylindrical, side,
bevel and formed milling cutters, the machine is suitable to process flat, inclined surface, slots and gears on miscellaneous work pieces. Equipped
with optional accessories, such as rotary table and dividing head, machine can be applicable to versatile processing. It is an ideal machine tool for
machining process, maintenance, instrument, die and moulds.♥Machine Characteristics
☆Vertical milling head can rotate ±45°. Spindle quill can move vertically. Worktable is applied to automatic and rapid feed.
☆Hardened and ground slide ways ensure high accuracy.
☆With high motor power and wide range speed, machine adapts to high speed cutting when using hard alloy cutters.
☆With gear transmission in machine body and lifting platform, the machine is rigid enough to bear heavy duty processing.
☆Complete coolant and lubrication system.
☆DRO equipment is optional.
Specification
Unit
X5036
Spindle taper
7:24 ISO 50
Table size
mm
1500 x 360
T-Slot
3-18-80mm
Distance from spindle nose to table surface
mm
60-430
Distance from spindle axis to column guideway surface
mm
360
Table travel X/Y/Z
mm
1000/320/400
Spindle speed range
r.p.m
12steps 60-1700
Worktable longitudinal/cross power feeding speed
Mm/min
8 steps 22-555(rapid move 830)
Worktable vertical lifting speed
Mm/min
11-275
Main motor power
kw
4.0
Worktable feeding motor
w
750
Worktable lifting motor
kw
1.1
Coolant pump power
w
90
Flow of coolant motor
L/min
25
Tilt angle of vertical milling head
°
±45°(front and rear)
Overall dimension
mm
2220x1790x1980
N.W/G.W
kg
2300/2380
