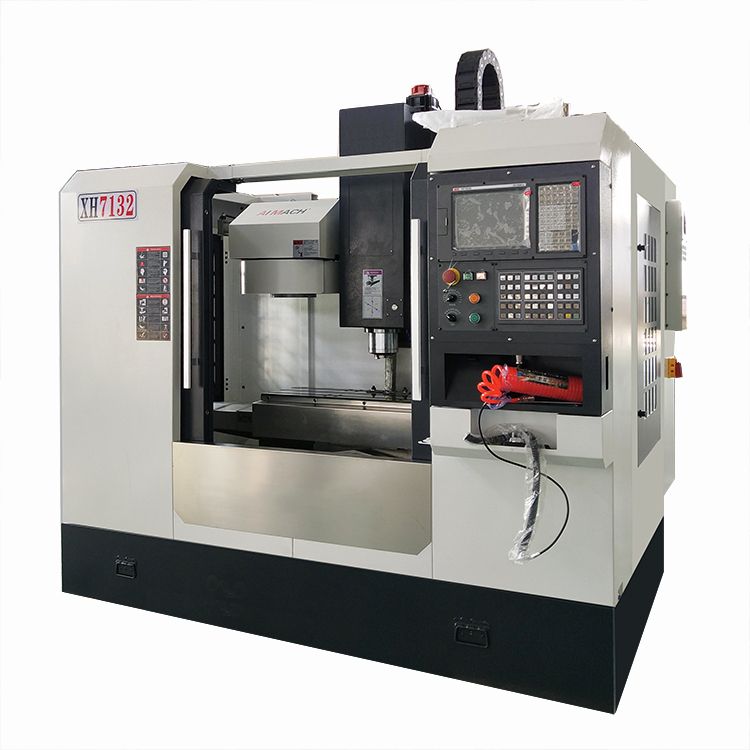

XH7132 Vertical CNC Machining Center

Product Name:
XH7132 Vertical CNC Machining Center
Model No.:
XH7132
Minimum Order:
1

Product Abstract:

XH7132 CNC milling machine is semi-closed loop vertical milling machine with X,Y,Z three axis with servo motor controlled.The spindle dirved by one servo motor to archieve continuously variable .Its structure and reasonable compact dimentions can complete various plates,boards,shells,cam,molds and some complex components.It also can archieve one –time clamping to proess drilling,milling,boring,expanding,reaming,tapping etc,the machine is widely applied to produce middle&small batch of various components,especially for machining some complex and high precision components.

Product Description

Item Name	Unit	XH7132
worktable	mm	1000 x 320
T-Slot number/size		3/14/105
Maximum loading weight	Kg	300
X,Y,Z axis travel	mm	600 x 400 x 500
Max . Spindle speed	r.p.m	8000
Main Motor power	kw	7.5
Spindle taper		BT30
Distance from spindle center to column	mm	400
Distance from spindle nose to worktable	mm	100-600
X,Y axis Servo motor	N.m	6/6
Z axis Servo motor	N.m	10
X,Y axis fast move speed	Mm/min	20000
Z axis fast move speed	Mm/min	15000
Cutting feed speed	Mm/min	1-5000
HIWIN Screw		32/12
Linear guide rail		Y/Z axis 35 roller screw linear guideway,X axis 35 ball screw.
Positioning accuracy	mm	±0.01
Repeatability positioning accuracy	mm	±0.005/300
Speed of power feed	Mm/min	1-5000
Machine weight	Kg	2800
Overall size	mm	2300 x1900 x 2500
