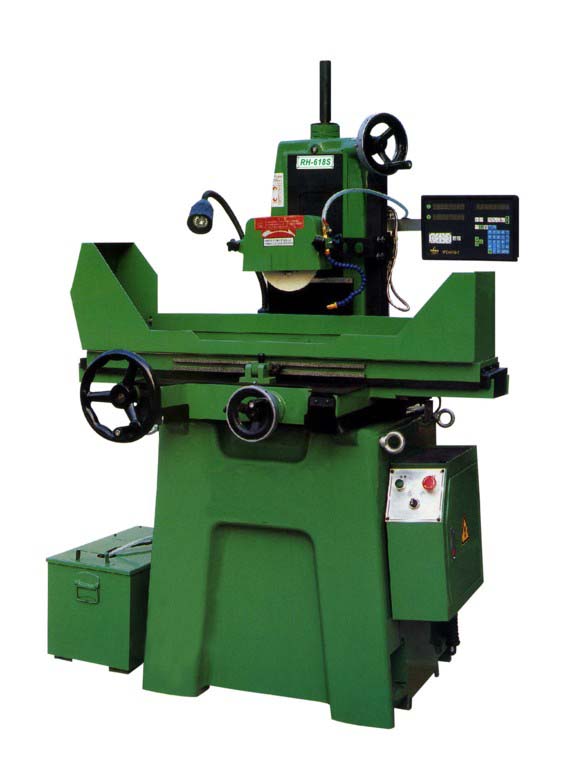

RF-618S技术参数

工作台尺寸

Table size

150x460mm(6x18”)

最大研磨长度

Max.grinding length

475mm(18-3/4”)

最大研磨宽度

Max.grinding width

160mm(6-1/3”)

主轴中心与工作台面距离

Distance from table surface to spindle center

400mm(15-3/4”)

标准磁铁尺寸

Standard magnetic chuck size

150x400mm(6x16”)

左右进给/手动行程

Cross traverse Feed/Manual travel

465mm(19”)

前后进给/手动进程

Longitudinal Movement/Manual travel

180mm(7”)

前后手轮没刻度进给

Handwheel per graduation

0.02mm(0.008”)

手轮每转进给

Handwheel per revolution

5mm(1/5”)

升降手轮每刻度进给

Vertical Downfeed/Handwheel per graduation

0.005mm(0.0002”)

手轮每转进给

Handwheel per graduation

1mm(0.005”)

砂轮尺寸（外径x宽度x孔径）

Wheel size (dia. x width x bore)

180x16x32mm/(7”x2/3”x1-1/4”)

主轴转速(50x60HZ)

Spindle speeds(50HZ/60HZ)

3000/3600rpm

主轴马达(V3级)

Spindle motor

1或1.5HP

净重

Net

720kg(1584lbs)

毛重(大约)

Gross

850kgs(1870lbs)

装箱尺寸(长x宽x高)

Parking  Size(Length x width x height)

1400x1150x1980mm(55x45x78”)
